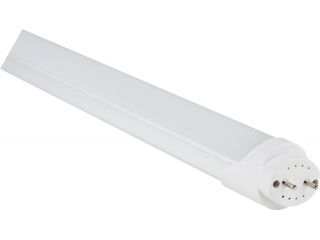

LED Fluorescent T10
Model:LED T10 1500mm
Ø30*1500mm
3528 SMD light source
AC 85-265V
3528 SMD light source
AC 85-265V
Description :
LED tube light is made by SMD LED mounted directly on the surface of the PCB (Printed Circuit board), and placed on aluminum alloy based and covered by Arc-shaped PC. LED fluorescent light is designed to replace the traditional T8 and T10 fluorescent tubes. Good for commercial lighting like hotel, office, home, warehouse, etc.
The advantages of Dinam LED tube light:
1. High brightness: super bright and high quality SMD 3528 as light source.
2. Reliability: Color Temperature uniformity all the time is our promise.
3. Energy-saving: half power consumption comparing with traditional fluorescent tube.
4. Isolated power supply increased the load rate and enhances safety.
5. Rotatable end caps, more convenient for installation.
6. Work without starter or ballast, instant soft-start.
7. Mercury-free and lead-free, fully compliant with RoHS.
Features:
|
· LED Qty
|
348 LEDs
|
|
· Dimension
|
Ø30*1500mm
|
|
· Material
|
PC & aluminum alloy
|
|
· PC cover types
|
Transparent, diffused, stripe
|
|
· Lamp base
|
G13
|
|
· Package
|
Each tube in an paper barrel tube, 20 paper barrel tubes in an carton
|
|
· Paper barrel tube size
|
Ø44*1540
|
|
· Outer carton size
|
1580x200x180mm
|
|
· Weight
|
16.5KGs/carton
|
|
· Warranty
|
2 years
|
|
· Approvals
|
CE, RoHS, FCC
|
|
· Storage temperature
|
-30°C~80°C
|
|
· Operating temperature
|
-20°C~50°C
|
|
· Working voltage
|
AC 110~240V
|
|
· Power consumption
|
26W
|
|
· Power factor
|
0.921
|
|
· Viewing angle
|
112.8 degree
|
|
· Emitting Color
|
Cool white, pure white, warm white
|
|
· CT for white color
|
3000- 4000K, 6500-7000K, 7500-8500K
|
|
· CRI
|
white: 78~80, warm white: 70~75 (High CRI types: white: 85~95, warm white: 80~90)
|
|
· Internal driver
|
Isolated power supply
|
|
· Lifespan
|
50,000hrs
|
|
· Accessories
|
Protection end caps
|
|
· Other tubes
|
Non-rotatable types, T8 types
|
|
