Summarization

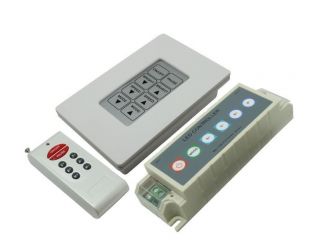

RF panel controller adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Direction for Use

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.There are six keys on the remote controller panel, the funtion of each key as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button, there are 21 modes of change for you to choose;
B+: A brightness control button, the step of the brightness add 1 by each pressing, a total of 256 steps;
B-: The step of the brightness subtract 1 by each pressing;
S+: The step of the speed change add 1 by each pressing, a total of 100 steps.
S-: The step of the speed change subtract 1 by each pressing.
3.There are eight keys on wall mounting panel, the function of each key as follows:
ON / OFF: switch button;
PAUSE：can play or pause led changing,easy to observe the static effect of the led
BRIGH   increase entire brightness, a total of 10 steps;
BRIGHT   increase entire brightness, a total of 10 steps;
SPEED   increase the rate of change, a total of 10 steps(its period is from 5S to IH)
SPEED   reduce the rate of change, a total of 10 steps;
MODE    select button, select up a total of 21 models;
MODE   select button, select down
4.Standard changes funtion as the following form:
