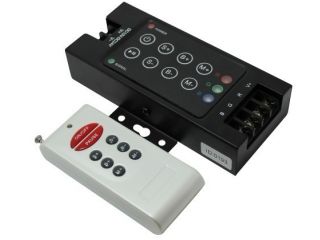

Audio & RF LED Controller
Model:DN-CA-RF8B-T
Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V ,18V, 24V（Order goods need marking out the required voltage）
● Output: 3 channels
● Connecting mode: common anode
● External dimension: L121ΧW53ΧH25 mm
● Packing size: L150ΧW76ΧH51 mm
● Net weight:255g
● Gross weight:285g
● Static power consumption: <1W
● Output current: <4A(each channel)
● Output power: 5V:<60W, 12V:<144W, 24V:<288W
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V ,18V, 24V
● Output: 3 channels
● Connecting mode: common anode
● External dimension: L121ΧW53ΧH25 mm
● Packing size: L150ΧW76ΧH51 mm
● Net weight:255g
● Gross weight:285g
● Static power consumption: <1W
● Output current: <4A(each channel)
● Output power: 5V:<60W, 12V:<144W, 24V:<288W
Description :
Summarization
RF 8-key Audio controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. This controller adopt inner microphone to receive exterior audio signal, let the speed change along with cadence and brightness change along with the volume. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Standard changes function as the following form:
|
No
|
Patterns
|
Remarks
|
|
1
|
Static red
|
Brightness is adjustable,
Speed is nonadjustable.
|
|
2
|
Static blue
|
|
|
3
|
Static purple
|
|
|
4
|
Static green
|
|
|
5
|
Static yellow
|
|
|
6
|
Static cyan
|
|
|
7
|
Static white
|
|
|
8
|
Three-color jumpy change
|
Speed and brightness are adjustable
|
|
9
|
Seven-color jumpy change
|
|
|
10
|
Three-color gradual change
|
Speed is adjustable.
|
|
11
|
Seven-color gradual change
|
|
|
12
|
Red flash
|
|
|
13
|
Blue flash
|
|
|
14
|
Purple flash
|
|
|
15
|
Green flash
|
|
|
16
|
Yellow flash
|
|
|
17
|
Cyan flash
|
|
|
18
|
White flash
|
|
|
19
|
R/B color alternant gradual change
|
Speed is adjustable，
Brightness is nonadjustable.
|
|
20
|
B/G color alternant gradual change
|
|
|
21
|
G/R color alternant gradual change
|
|
|
22
|
Seven-color jumpy change(external signal)
|
Speed changes with the voice swing, brightness controlled with the volume, the higher volume is, the greater the brightness.
|
