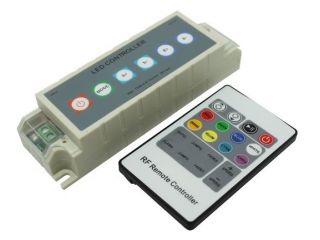

20-Key RF RGB Controller (Type H)
Model:DN-RF20B-C
Technical parameters
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )
● output: 3 channels
● connection mode: common anode
● external dimension: L130 Χ W40 Χ H31 mm
● packing size: L140 Χ W50 Χ H60 mm
● net weight: 85 g
● gross weight: 110 g
● static power: <1W
● output current: <3A( each channel )
● output power: 5V<45W,12V<108W,24V<216W
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )
● output: 3 channels
● connection mode: common anode
● external dimension: L130 Χ W40 Χ H31 mm
● packing size: L140 Χ W50 Χ H60 mm
● net weight: 85 g
● gross weight: 110 g
● static power: <1W
● output current: <3A( each channel )
● output power: 5V<45W,12V<108W,24V<216W
Description :
Summarization
Commont 6 key controller adopts the advanced micro-control unit, cooperate with 20 key ultrathin remote controller.Using for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Direction for Use
1.Connect the load wire at first, following by the power wire; Please ensure short circuit
can not occur between connecting wire before you turn on the power;
2.There are six keys on the controller panel, the function of each key as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button,
B+: A brightness control button,the step of the brightness add 1 by each pressing,a total of 256 steps;
B-: The step of the brightness subtract 1 by each pressing;
S+: The step of the speed change add 1 by each pressing,a total of 100 steps.
S-: The step of the speed change subtract 1 by each pressing.
3.Standard changes function as the following form:
|
No
|
Patterns
|
Remarks
|
No
|
Patterns
|
Remarks
|
|
1
|
Static red
|
Brightness is adjustable, Speed is nonadjustable.
|
12
|
Red stroboflash
|
Speed and
Brightness
are adjustable
|
|
2
|
Static blue
|
13
|
Blue stroboflash
|
||
|
3
|
Static purple
|
14
|
Purple stroboflash
|
||
|
4
|
Static green
|
15
|
Green stroboflash
|
||
|
5
|
Static yellow
|
16
|
Yellow stroboflash
|
||
|
6
|
Static cyan
|
17
|
Cyan stroboflash
|
||
|
7
|
Static white
|
18
|
White stroboflash
|
||
|
8
|
Three-color jumpy changing
|
Speed and brightness are adjustable
|
19
|
R/B crossfade
|
Speed is adjustable,
brightness is nonadjustable
|
|
9
|
Seven-color jumpy changing
|
20
|
B/G crossfade
|
||
|
10
|
Three-color gradual changing
|
Speed is adjustable, brightness is nonadjustable
|
21
|
G/R crossfade
|
|
|
11
|
Seven-color gradual changing
|
|
|
|
4.The buttons' function of remote controller as the following form:
|
Brightness+
|
Brightness-
|
Pause/Run
|
ON/Off
|
|
Static red
|
Static green
|
Static blue
|
Static white
|
|
Static orange
|
Static yellow
|
Static indigo
|
Static purple
|
|
Auto
|
3 color jumpy change
|
3 color gradual change
|
Speed up
|
|
Flash
|
7 color jumpy change
|
7 color gradual change
|
Speed-down
|
