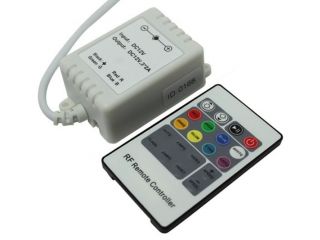

20-Key RF RGB Controller (Type J)
Model:DN-RF20B-J
Technical parameters
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)
● output: 3 channels
● connection mode: common anode
● controller dimension: L63ΧW35ΧH22 MM
● remote dimension : L85ΧW52ΧH7 MM
● packing size: L105ΧW65ΧH40 mm
● net weight: 50g
● gross weight: 70g
● static power consumption: <1W
● output current: <2A( each channel )
● output power: 5V:<30W, 12V:<72W, 24V:<144W
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)
● output: 3 channels
● connection mode: common anode
● controller dimension: L63ΧW35ΧH22 MM
● remote dimension : L85ΧW52ΧH7 MM
● packing size: L105ΧW65ΧH40 mm
● net weight: 50g
● gross weight: 70g
● static power consumption: <1W
● output current: <2A( each channel )
● output power: 5V:<30W, 12V:<72W, 24V:<144W
Description :
Summarization
RF Controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Direction for Use
Automatically complete change after turning on the power,need not any setting; Please ensure short circuit can not occur between connecting wire before you turn on the power.
