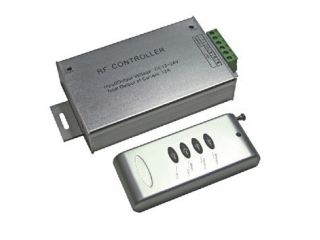

350mA constant current RGB Controller

Model:DN-RF4B-H-350MA

Technical Parameters
● Working temperature: -20-60 ° C
● Voltage: DC 5V/12V~24V
● Output: 3 channels
● Output current: 350mA (each channel)
● Controller dimension:L128×W64×H24mm
● Gross weight: 220g
● Output power: 5 V: <5.25W, 12V: <12.6W, 24V: <25.2W
● Connect the number of load: 12V：1~3LED 1/3W 24V:1~7LED 1/3W
