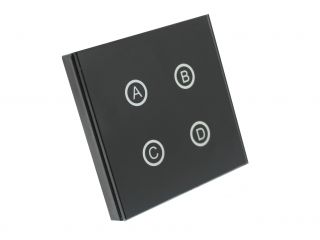

DALI touch scene switch panel
Model:DN-TRFDLM-GC
Technical parameters
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent current: < 6MA
● External dimension: L86.6 * W86 * H36.5mm
● Gross weight: 63.2g
● Net weight: 34.4g
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent current: < 6MA
● External dimension: L86.6 * W86 * H36.5mm
● Gross weight: 63.2g
● Net weight: 34.4g
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international stard, popular lighting control protocol, with digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.
DALI touch scene switch panel adopt advanced computer control chip, apply standard DALI protocol, through the input signal of different combination of buttons(short press, long press), to realized 4 scenes switching, also can snapshot real-time scene and save.
Function description
•Scene switch panel through button combination to sett and start dali dimmer lighting scene.
•Can control scene value range is 1-16, but one time just can control 4 scene.
•Each panel all can programme current scene, add to button represent scene value.
•DALI Touch Multi-function Panel allow multiple master mode, multi-module can exist in one dali bus
network.
Setting
DALI scene switch panel can through code switch to choose the scene, code switch can choose 4 different scene.
|
Code switch corresponding value
|
Scene A
|
Scene B
|
Scene C
|
Scene D
|
|
0
|
1
|
2
|
3
|
4
|
|
1
|
2
|
3
|
4
|
5
|
|
2
|
3
|
4
|
5
|
6
|
|
3…9
|
4…10
|
5…11
|
6…12
|
7…13
|
|
A…F
|
11…16
|
12…0
|
13…2
|
14…3
|
