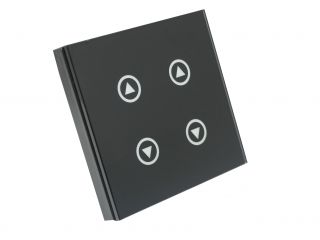

DALI Group Control Panel
Model:DN-TRFDLM-SC
Technical parameters
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent current:: < 6MA
● External dimension: L86.6 * W86* H36.5mm
● Gross weight: 63.8g
● Net weight: 34.9g
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent current:: < 6MA
● External dimension: L86.6 * W86* H36.5mm
● Gross weight: 63.8g
● Net weight: 34.9g
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.
DALI touch group control panel adopt advanced computer control chip, can group switch,dimming and programme of dimmer on bus, also can use button without computer to operate, it is convenience for user.
Group control panel function
DALI touch group control panel can operate 1-2 group or equipments on broadcast bus, can control equipments on/off and brightness on bus, and the controller can control groups range is 16 groups.
|
Button duration
|
Function
|
||
|
single key
|
Up key longest time
|
DOWN key longest time
|
|
|
10-500ms
|
|
|
ON at 100% or OFF
|
|
|
10-500ms
|
|
ON at Max or OFF
|
|
|
|
10-500ms
|
ON at Min or OFF
|
|
>500ms
|
>500ms
|
>500ms
|
ON (if required) and level adjust
|
Enter group programme mode
Below table are enter the program mode operating steps, operating key is any key which connect the
panel. And if you do not run continuously according the operating steps, it will exit program mode.
|
Order
|
System response
|
|
Long press one button for 10s
|
Buzzer rang one sound
|
|
Release one button for 1s
|
Buzzer rang one sound again
|
|
Press this button again for 1s
|
Buzzer rang two sound
|
|
After release button, hear a sound again
|
System finish distribute address, enter to group programme mode
|
The module which enter the programme mode group, have 2 kinds of programme way, the selected DALI dimmer "add group" and "delete group".
Choose dimmer
To make the DALI dimmer module to join delete group, first need to make the DALI dimmer which wants to be programmed in the selected sate. Press the button less than 500ms, it will select the DALI dimmer one by one, each equipment will be selected alternate.
Selected DALI dimmer "add group"
After choose the equipment, press the button, it will hear 2 buzzer rang sound, and then release the button, it can make the selected DALI dimmer add to button represents group.
Selected DALI dimmer "delete group"
After choose the equipment, press the button, it will hear 3 buzzer rang sound, and then release the button, it can make the selected DALI dimmer remove to button represents group.
Log out group programme mode
Under the programme mode, long press the button, after hear the fourth buzzer, then release, can hear continuous three sound, that prove the dimming module have quit the programme mode already.
Set button operate represents group value
DALI touch group control panel can choose broadcast or 1-2 in 16 groups to operate, choose way as the list below:
|
Group Selector
Position rotating switch
|
First input
Group address
|
Second input
Group address
|
|
0
|
Broadcast
|
1
|
|
1
|
1
|
2
|
|
2
|
2
|
3
|
|
3…9
|
3…9
|
4…10
|
|
A…F
|
10…15
|
11…16
|
