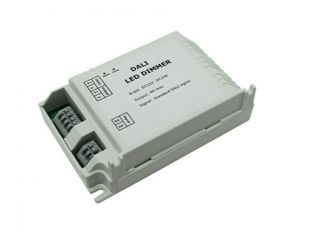

DALI LED Dimmer

Model:DN-DLDIM-DC

Technical parameters
● Working Temperature: -20-60° C
● Supply voltage: DC 12V~24V
● Controller dimension: L103.64 x W67.9 x H29.7 mm
● Gross weight: 95g
● Output current: ≤4A
● Power output: 12V: ≤48W, 24V: ≤96W
● Dimming signal: DALI standard signal(IEC60929)
● Dimming range:0.1%-100%, the accord with human characteristics of the dimming curve
● Dimming mode:PWM
● Output:one channel NMOS drain output
● Output voltage:same with the supply voltage
● Connection mode: spring-free screw-type wring, terminal block 2.6mm diameter
