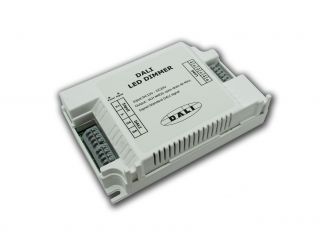

DALI Low Voltage Dimmer
Model:DN-DLRGBDIM-DC
Technical parameters
● Working temperature: -20~60℃
● Supply voltage: DC12V/24V
● Dimming signal: standard IEC60929 DALI signal
● DALI address: occupy 3 channels
● Output: 3 channels (the same voltage and supply voltage)
● Dimming range: 0.1%-100%, the accord with human characteristics of the dimming curve
● Net weight: 169g
● Gross weight: 232g
● External dimension: L122.3mm x W78.19 x H31.78mm
● Packing size: L145mm x W95mm x H50mm
● Connection mode: spring-free screw-type wring, terminal block 2.6mm diameter
● Output current: <4A
● Output power: 12V:<144W, 24V:<288W
● Working temperature: -20~60℃
● Supply voltage: DC12V/24V
● Dimming signal: standard IEC60929 DALI signal
● DALI address: occupy 3 channels
● Output: 3 channels (the same voltage and supply voltage)
● Dimming range: 0.1%-100%, the accord with human characteristics of the dimming curve
● Net weight: 169g
● Gross weight: 232g
● External dimension: L122.3mm x W78.19 x H31.78mm
● Packing size: L145mm x W95mm x H50mm
● Connection mode: spring-free screw-type wring, terminal block 2.6mm diameter
● Output current: <4A
● Output power: 12V:<144W, 24V:<288W
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international stard, popular lighting control protocol, which adopt Manchester codes of digital transmission, with a whole grouping dimming...
