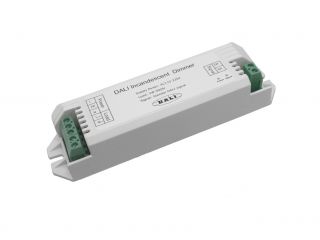

DALI Incandescent Dimmer
Model:DN-DLDIM-LM-500W
Technical parameters
● Working temperature: -20~60℃
● Supply voltage: AC220V (50Hz/60Hz)
● Dimming signal: according to DALI standaed V0 (IEC60929) signal
● Output: 1 channel
● Dimming ways: along the phased (trailing edge)
● Dimming range: 0.1% - 100%, the accord with human characteristics of the dimming curve
● External dimension: L149mm * W40mm * H28 mm
● Packing size: L150mm * W55mm * H50mm
● Load: 5-500W incandescent lamp.
● Protection: over current, short circuit protection.
● Gross weight: 99g
● Net weight: 70g
● Connection mode: green wire connecting terminal
● Working temperature: -20~60℃
● Supply voltage: AC220V (50Hz/60Hz)
● Dimming signal: according to DALI standaed V0 (IEC60929) signal
● Output: 1 channel
● Dimming ways: along the phased (trailing edge)
● Dimming range: 0.1% - 100%, the accord with human characteristics of the dimming curve
● External dimension: L149mm * W40mm * H28 mm
● Packing size: L150mm * W55mm * H50mm
● Load: 5-500W incandescent lamp.
● Protection: over current, short circuit protection.
● Gross weight: 99g
● Net weight: 70g
● Connection mode: green wire connecting terminal
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international stard, popular lighting control protocol , which adopt Manchester codes of digital transmission , with a whole grouping dimming...
