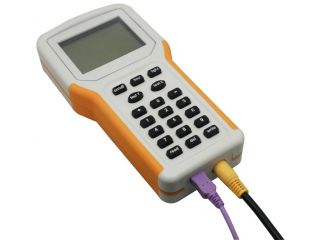

DALI Editor
Model:DN-DLED
Technical parameters
● Supply voltage: lithium battery
● Load output: DALI signal
● Working temperature: -20-60 ℃
● Standby current: <7mA
● Lithium battery capacity: 1500mAh
● Signal interface: DALI signal
● Display: highlighting LED display screen
● Gross weight: 445.2g
● Net weight: 386.2g
● External dimension: L205 * W100 * H38mm
● Packing size: L215 * W106 * H58mm
● Supply voltage: lithium battery
● Load output: DALI signal
● Working temperature: -20-60 ℃
● Standby current: <7mA
● Lithium battery capacity: 1500mAh
● Signal interface: DALI signal
● Display: highlighting LED display screen
● Gross weight: 445.2g
● Net weight: 386.2g
● External dimension: L205 * W100 * H38mm
● Packing size: L215 * W106 * H58mm
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol, which adopt Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing inquiries, and other powerful state lighting dimming function.
This product adopt advanced computer control chip, can inquire, amend and test DALI dimming. Can convenience of customers to editor address of dimmer on bus, this product power supply is lithium battery, also convenience of customers to carry and overhaul.
Button and LCD function:
Adopt button control, each button function as below:
|
button
|
describe
|
|
on/off
|
On(awaken)Off(enter power down mode)key
|
|
bur
|
Buzzing switch
|
|
light
|
Backlight switch
|
|
test1
|
Test 1(DALI broadcast on/off)
|
|
test2
|
Test 2(DALI short address on/off)
|
|
0-9
|
Input numbers
|
|
Read
|
Inquiring key
|
|
Write
|
Sending key
|
|
Del
|
Delete key
|
|
+
|
Id code add key
|
|
-
|
Id code minus key
|
LCD instruction:
ID: DALI address value(255:broadcast address,0-64 short address)
Fun: function(READ:inquire,WRITE:amend,TEST1:test broadcast address,TEST2:test short address)
Sta: State(READING:under inquiring,WRITING:under amending, TESTING:under testing)
Battery charging instruction
The bottom right corner of the LCD screen shows the battery power,in total three trellis,when battery is displayed as space,that explain battery have no power,at this time it need to charging in time,then it can use normal,otherwise it will auto power-off,controller will enter power down status.
Application phenomenon
When starting up,inquire current connection dimmer equipment values.When press"bur",buzzer open,when press down,it will ring once.When search and write address successful,it will ring once,otherwise it will continuous ring some seconds,then represent operation failure. Press"test1"key,can test if all equipments on bus connection wrong,if connect right,all lamps will flicker at the same time.Press"test2"key,can test if the current equipments address is right,if the address is right,lamps will flicker.
