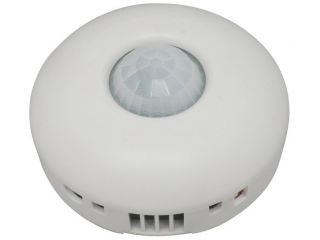

DALI Multifunction Sensor
Model:DN-DLMSR
Technical parameters
● Working temperature: -20-60 ℃
● Power supply: DALI bus power supply
● Input signal: human body induction, light induction signal.
● Output signal: standard DALI signal
● Input current: ≤6mA
● Gross weight: 122.5g
● Net weight: 78.5g
● External dimension: π*R95 * R95 * H45mm
● Packing size: L106 * W106 * H52mm
● Installed at a height of 2.5 m, check range: 5m
● Light threshold set range: 3-100lx
● Working temperature: -20-60 ℃
● Power supply: DALI bus power supply
● Input signal: human body induction, light induction signal.
● Output signal: standard DALI signal
● Input current: ≤6mA
● Gross weight: 122.5g
● Net weight: 78.5g
● External dimension: π*R95 * R95 * H45mm
● Packing size: L106 * W106 * H52mm
● Installed at a height of 2.5 m, check range: 5m
● Light threshold set range: 3-100lx
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.
DALI multifunction sensor built-in human body induction and light induction, adopt advanced computer control chip, transfer these induction signal to DALI order to control DALI dimmer on bus, make the DALI system more intelligent.
Operate instruction
• Timing length setting: rotate timing potentiometer (Time), can control timing length range is 1-20s,
clockwise rotation can increase value.
• Illumination threshold value setting: rotate threshold value to setting potentiometer(CDS), can control
illumination threshold range is 3-100lx, clockwise rotation can increase value.
• Human body, illumination control select, dial code switch(Mode) can setting control mode. Dial code way
as below:
|
1
|
2
|
MODE
|
|
on
|
off
|
PIR
|
|
off
|
on
|
CDS
|
|
on
|
on
|
PIR&CDS
|
|
off
|
off
|
Disable
|
(Note: PIR-human body induction ,CDS-light induction ,Disable-invalid)
Application phenomenon
• When set light induction control mode: when after the outside illuminance continuous less than setting threshold value for 10s, the control group of lamps and lanterns will light up slowly. When after the outside illuminance continuous more than setting threshold value for 10s, the control group of lamps and lanterns will put out slowly.
• When set human body induction mode: when induction for move body, it will light up the control group of lamps and lanterns, when it not induction move body, it will put out.
• When set human body induction and light induction control mode: when outside illuminance more than setting threshold illuminance, human body induction is disable, when outside illuminance less than setting threshold illuminance, human body induction is effective.
• When set human body induction mode: when induction for move body, it will light up the control group of lamps and lanterns, when it not induction move body, it will put out.
• When set human body induction and light induction control mode: when outside illuminance more than setting threshold illuminance, human body induction is disable, when outside illuminance less than setting threshold illuminance, human body induction is effective.
Setting
Coding disc, 0-F can choose the control group of human body induction and light induction. Table of comparisons as below:
|
Group Selector
Position rotating switch
|
Light Group
|
PIR Group
|
|
0
|
Broadcast
|
1
|
|
1
|
1
|
2
|
|
2
|
2
|
3
|
|
3…9
|
3…9
|
4…10
|
|
A…F
|
10…15
|
11…16
|
