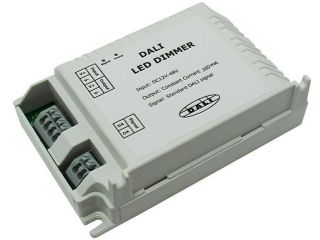

DALI LED DIMMER
Model:DN-DLDIM-350mA
Technical parameters
● Working temperature : -20~60℃
● Supply voltage: DC12V-48V
● Dimming signal : According to DALI standaed V0(IEC60929) signal
● Output : 350mA
● Load: 350mA LED can be connected to 1-12 satellites;
● Dimming range : 0.1%-100%
● External dimension: L103.64ΧW67.9ΧH29.7 mm.
● Working temperature : -20~60℃
● Supply voltage: DC12V-48V
● Dimming signal : According to DALI standaed V0(IEC60929) signal
● Output : 350mA
● Load: 350mA LED can be connected to 1-12 satellites;
● Dimming range : 0.1%-100%
● External dimension: L103.64ΧW67.9ΧH29.7 mm.
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol , which adopt Manchester codes of digital transmission , with a whole grouping dimming, dimming addressing inquiries, and other powerful state lighting dimming function. Compared with the 0-10v analogue dimming , it’s more precise dimming ,addressable , stable ,focus control ,easy installation and so on .
This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional way of comparison , with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED(such as the current brightness, power intensity, the minimum support brightness, address, etc.), easy distributed control and so on.
