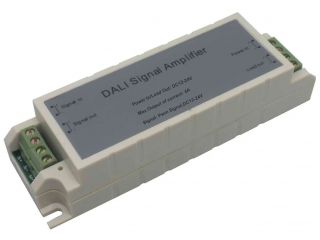

DALI Amplifier（Load NMOS open-drain output with one channel）
Model:DN-DLAMP-DC
Technical parameters
● Supply voltage: DC12V-24V , Current≤4A
● Output : NMOS open-drain output , voltage of power supply voltage, current ≤ 4A.
● Signals Using high-speed opto isolated , isolated voltage 2.5 kv
● Signal input voltage range :12-24VDC
● Power input voltage :12-24VDC
● With the way the load output power can be extended up to 96W.
● Signal Input: PWM dimming signal, DC12-24V.
● Signal output: PWM dimming signal, NMOS open-drain output , voltage of power supply voltage.
● External dimension: L130ΧW40ΧH52 mm.
● Packing size : L140ΧW50ΧH60 mm
● Gross weight : 92g
● Net weight : 62g
● Working temperature : -20~60℃
● Supply voltage: DC12V-24V , Current≤4A
● Output : NMOS open-drain output , voltage of power supply voltage, current ≤ 4A.
● Signals Using high-speed opto isolated , isolated voltage 2.5 kv
● Signal input voltage range :12-24VDC
● Power input voltage :12-24VDC
● With the way the load output power can be extended up to 96W.
● Signal Input: PWM dimming signal, DC12-24V.
● Signal output: PWM dimming signal, NMOS open-drain output , voltage of power supply voltage.
● External dimension: L130ΧW40ΧH52 mm.
● Packing size : L140ΧW50ΧH60 mm
● Gross weight : 92g
● Net weight : 62g
● Working temperature : -20~60℃
Description :
Summarization
DN-DLAMP-DC is our independent research and development production of a DALI amplifier is mainly used in signal transmission distance, due to line losses and environmental disturbances caused by signal distortion and attenuation, to be amplified using amplifier shaping may be required to increase the load power applications.
