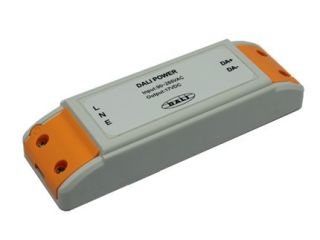

DALI power supply driver
Model:DN-DALI-PSU
Technical Parameters
● Working temperature: -20-60 ℃
● Input voltage: AC85V-255V
● Input frequency: 50-60HZ
● Output voltage: 17V
● Output current: 0.25A
● Output power: 5.4W
● Gross weight: 120g
● Net weight: 100g
● Packing size: L145 * W48 * H30 mm
● External dimension: L140* W44.5 * H27 mm
● Connect mode: screw connect mode
● Working temperature: -20-60 ℃
● Input voltage: AC85V-255V
● Input frequency: 50-60HZ
● Output voltage: 17V
● Output current: 0.25A
● Output power: 5.4W
● Gross weight: 120g
● Net weight: 100g
● Packing size: L145 * W48 * H30 mm
● External dimension: L140* W44.5 * H27 mm
● Connect mode: screw connect mode
Description :
Summarization
DALI power supply adopts advanced micro-control chip, this product can supply 17V voltage and within 250mA current for DALI bus. And also have undervoltage, overload, short circuit protection function.
Direction for use
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not
occur between connecting wire before you turn on the power;
2.The input power range is AC90-256V.
