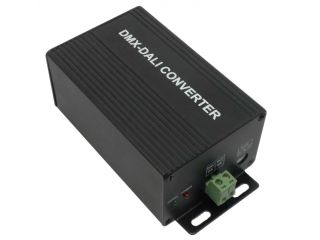

DMX signal transform to DALI signal converter
Model:DN-DMXCV-DL
Technical parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC12V-24V
● Input signal: Standard DMX-512 signal
● Output signal: Standard IEC60929 DALI signal
● Gross weight: 214g
● Net weight: 158g
● Packing size: L145ΧW70ΧH50 mm
● External dimension: L130ΧW65ΧH46 mm
● Connection mode: DALI output is 2pin green connection pillar, DMX input is 3pin Corleone head
● Working temperature: -20-60 ℃
● Supply voltage: DC12V-24V
● Input signal: Standard DMX-512 signal
● Output signal: Standard IEC60929 DALI signal
● Gross weight: 214g
● Net weight: 158g
● Packing size: L145ΧW70ΧH50 mm
● External dimension: L130ΧW65ΧH46 mm
● Connection mode: DALI output is 2pin green connection pillar, DMX input is 3pin Corleone head
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol BUS, which adopt to Manchester codes of digital transmission, with a whole and grouping dimming, addressing dimming, inquire lamps and lanterns sates, and other powerful dimming function. Compared with the 0-10V analogue dimming, it’s more precise dimming, addressable, stable, focus control, easy to installation and so on.
DMX512 is first by USITT (American theater technology association) develop and become from the console with standard digital interface control dimmers way. It has simple, reliable, flexible features. This product transform the international widely used DMX-512 standard signal to standard DALI dimming signal. It can realize DMX transmitter to DALI dimming signal control, realize 2 kinds protocol seamless transition.
Direction for use:
1. Connect the signal wire first, then the load wire, finally the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. This product transform the value of first 64 channels in DMX signal to dimming value of 64 channels in DALI signal. Can realize point to point control, address mapping table as follow:
|
DMX address
|
DALI channel address
|
|
0
|
0
|
|
1
|
1
|
|
2
|
2
|
|
3
|
3
|
|
4
|
4
|
|
5
|
5
|
|
6
|
6
|
|
7
|
7
|
|
8
|
8
|
|
9
|
9
|
|
…
|
…
|
|
62
|
62
|
|
63
|
63
|
For example: the value of DMX address 1 is 166, the dimming value of DALI address 1 is 166.
3、DMX dimming curve is linear, convert DALI dimming signal curve is logarithm way.
