Dinam Led Limited

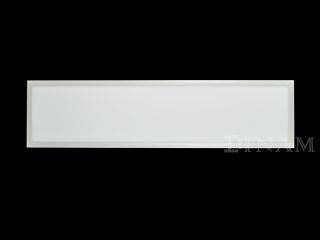

LED panel light

Model:1200x300-700mA

1195x295x10.4mm
3528 SMD light source
DC 55~70V (700mA)
45.2W

Data Sheet IES Files

Description :

It’s made by SMD LED mounted directly on the surface of the flexible PCB (Printed Circuit board), and placed at the side of LGP (light guide plate) and covered by aluminum frame. LED Panel Light is good for commercial lighting like hotel, office, home, and also advertising signs, stage scenery.

The advantages of Dinam LED panel light:

1. High brightness and uniformity: Laser engraving pattern on Japan Mitsubishi light guild plate by Dinam’s laser engraving machines. (This method is 30% brighter than digital printed method)

2. Ultra-thin and light: only 10.4 mm of thickness, only 3.7 KGS for 1200x300mm panel.

3. Reliability: smooth and even lighting effect and Color Temperature uniformity all the time is our promise.

Features:

· Dimension	1195x295x10.4mm
· Material	Quality light guide plate & aluminum alloy
· Package	Each panel in an inner box, 5 inner boxes in one carton
· Outer carton size	132x32x38cm
· Weight	3.7KG/unit
· Warranty	2 years
· Approvals	CE, RoHS
· Storage temperature	-30°C~60°C
· Operating temperature	-20°C~50°C
· Working voltage	DC 55~70V
· Working current	700mA
· Power consumption	45.2W
· Waterproof rating	IP52
· Lifespan	50,000hrs
· Emitting Color	white, warm white
· Max. Lumen per LED	8lm for white color
· CT for white color	3000K, 4000K, 6000K
· CRI	white: 78~80, warm white: 70~75 (High CRI types: white: 85~95, warm white: 80~90)
· Luminosity at 1.2m	White>793lux, warm white>583lux
· Lumen maintenance after 10,000hrs	94.6%
· Installation method	Recessed, suspended, on surface(ceiling, wall)
· Suspended accessories	Iron chains, stainless steel rope
· On surface accessories	Movable metal clips(free of charge), M4 screws fittings, aluminum mounting frame

Part NO.	LED color	Light source	Power	Lumen
LD-PACC3528-L-W	white	3528	45.2W	3319lm
LD-PACC3528-L-WW	warm white	3528	45.2W	2418lm
