Dinam Led Limited

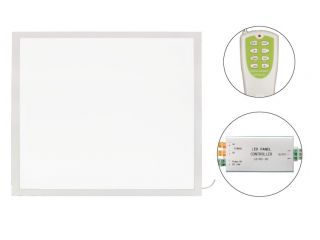

LED Panel Light

Model:618x618-24V

618x618x10mm
3014 SMD light source
DC 24V
Dimmable
43±10%W

Data Sheet IES Files

Description :

It’s made by SMD LED mounted directly on the surface of the flexible PCB (Printed Circuit board), and placed at the side of LGP (light guide plate) and covered by aluminum profile. LED Panel Light is good for commercial lighting like hotel, office, home, and also advertising signs, stage scenery.

The advantages of Dinam LED panel light:

1. High brightness and uniformity: Laser engraving pattern on Japan Mitsubishi light guild plate by Dinam’s laser engraving machines. (This method is 30% brighter than digital printed method)

2. Ultra-thin and light: only 10 mm of thickness, only 4.3 KGS for 618x618mm panel.

3. Reliability: smooth and even lighting effect and Color Temperature uniformity all the time is our promise.

Features:

· Dimension	618x618x10mm
· Material	Quality light guide plate & aluminum alloy
· Package	Each panel in an inner box, 5 inner boxes in one carton
· Outer carton size	78x72x36cm
· Weight	4.3KG/unit
· Warranty	2 years
· Approvals	CE, RoHS
· Storage temperature	-30°C~60°C
· Operating temperature	-20°C~50°C
· Working voltage	DC 24V
· Power consumption	43±10%W
· Waterproof rating	IP20
· Lifespan	50,000hrs
· Dimmable	Yes
· Emitting Color	white, warm white
· Max. Lumen per LED	8lm for white color
· CT for white color	3000K, 4000K, 6000K
· CRI	white: 78~80, warm white: 70~75 (High CRI types: white: 85~95, warm white: 80~90)
· Lumen maintenance after 10,000hrs	94.6%
· Installation method	Recessed, suspended, on surface(ceiling, wall)
· Suspended accessories	Iron chains, stainless steel rope
· On surface accessories	Movable metal clips(free of charge), M4 screws fittings, aluminum mounting frame

Part NO.	LED color	Light source	Power	Lumen
LD-PATC3014CW	White~warm white	3014	43±10%W	2800~3000lm
