5050 Alu 72 LEDs/m
Model:DN-R50501613W72-24V-B
LED Aluminum Light Bar Series
IP67
5050, 72 LEDs/m
DC 24V
Dimmable
IP67
5050, 72 LEDs/m
DC 24V
Dimmable
Description :

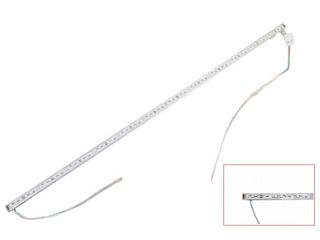

SMD LED Aluminum Light Bar adopts super bright SMD led as light source mounted on qualified heat-resistant printed circuit board (PCB), covered by aluminum profile, and dropped by PU resin. 6 LEDs as a group and can be cut freely. The ultrathin and low-voltage power supply makes it easy to be operated. It is widely applied in cove, sign letter, decorative, mood, premier lighting etc.
Features:
|
· PCB color
|
white
|
|
· LED Qty per cutting unit
|
6 LEDs
|
|
· Cutting length
|
83.3mm
|
|
· Cutting unit per meter
|
12
|
|
· Dimension
|
1000x16x13mm
|
|
· Package
|
20 meters/bag
|
|
· Warranty
|
2 years
|
|
· Approvals
|
CE, RoHS
|
|
· Working voltage
|
DC 24V
|
|
· Working current
|
0.7A/m
|
|
· Power consumption
|
17W/m
|
|
· Dimmable
|
Yes
|
|
· Vibration resistant
|
Yes
|
|
· Beam angle
|
120 degree
|
|
· Emitting Color
|
Red, green, yellow, blue, white, warm white, pink, purple, ultraviolet, IR
|
|
· CT for white color
|
2400K, 2700K, 3000K, 4000K, 5000K, 6000K, 10000K
|
|
· CRI
|
white: 78~80, warm white: 70~75
|
|
· Lumen maintenance after 10,000hrs
|
95%
|
|
· Accessories
|
Mounting clips for installation, male/female connectors are optional
|
|
Part NO.
|
Wave length/Kevin
|
LED color
|
LED Qty/m
|
Lumen/meter
|
|
DN-R50501613R72-24V-B
|
620-630nm
|
red
|
72
|
432
|
|
DN-R50501613Y72-24V-B
|
585-595nm
|
yellow
|
72
|
432
|
|
DN-R50501613B72-24V-B
|
455-470nm
|
blue
|
72
|
540
|
|
DN-R50501613G72-24V-B
|
510-525nm
|
green
|
72
|
864
|
|
DN-R50501613W72-24V-B
|
5500-6500K
|
white
|
72
|
720~1152
|
|
DN-R50501613WW72-24V-B
|
2700-3500K
|
warm white
|
72
|
576~864
|
|
DN-R50501613RGB72-24V-B
|
/
|
RGB
|
72
|
144/288/180
|
