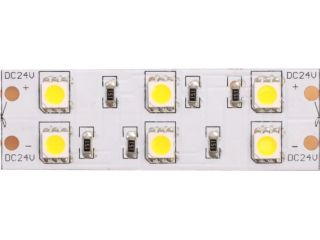

5050 120 LED Flex
Model:DN-F5050W120
5050SMD
120 LEDs/meter
DC 24V/12v
Dimmable
With 3M adhesive tape
120 LEDs/meter
DC 24V/12v
Dimmable
With 3M adhesive tape
Description :
Product features:
- 24V and 12V DC optional
- 600LED, 16.7mm/pitch
- Dimensions: 5,000mm x 20 mm x 2 cmm
5,000mm x 15 mm x 2 cmm
5,000mm x 28 mm x 2 cmm
- Up to 92lm/Watt
- (24V) 6.0A total/ 60mA per step
- (24V) 1.44Watt, 6led/Segment
- Storage temp.: -30~80℃
- Operation Temp.: -20~50℃
- Also available at CRI90
-Dimming: voltage reduction/PWM
-Max connection length: 5 meters (both ends supplied)
Parameters:
|
Part No.
|
CCT / Wavelength*
|
Color Variance
|
Bining
|
Voltage (V DC)**
|
Power
(W/M) |
Typ. Flux
(LM/M) |
Typ. Flux
(LM/Watt) |
|
DN-F5050WW120-20
|
2000K
|
+ / - 150K
|
4 Step MacAdam
|
24/12
|
28.8
|
2220
|
77
|
|
DN-F5050WW120-24
|
2400K
|
2280
|
79
|
||||
|
DN-F5050WW120-27
|
2700K
|
2340
|
81
|
||||
|
DN-F5050WW120-120
|
3000K
|
2400
|
83
|
||||
|
DN-F5050NW120-40
|
4000K
|
2580
|
90
|
||||
|
DN-F5050CW120-55
|
5500K
|
+ / - 200K
|
5 Step MacAdam
|
2640
|
92
|
||
|
DN-F5050CW120-65
|
6500K
|
2640
|
92
|
||||
|
DN-F5050RGB120
|
-
|
RGB
|
Single bin
|
R240:G480:B300
|
-
|
||
|
DN-F5050R120
|
623nm
|
red
|
720
|
25
|
|||
|
DN-F5050Y120
|
592nm
|
yellow
|
720
|
25
|
|||
|
DN-F5050G120
|
525nm
|
green
|
1440
|
50
|
|||
|
DN-F5050B120
|
470nm
|
blue
|
1080
|
38
|
|||
|
DN-F5050C1/C2-120
|
Double colors
|
28.8 max
|
-
|
-
|
|||

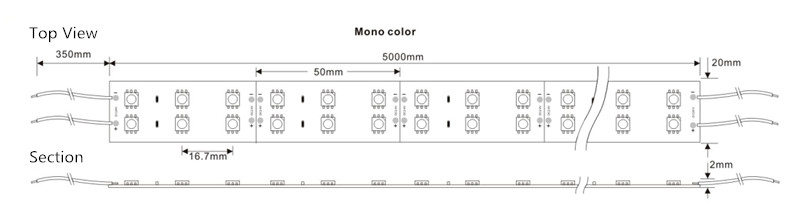

Dimensions:
Packages: 5 meter strip in one reel, one reel in one anti-static bag, 25 bags put into one carton
Operation guidances:
