Description :
|
Part No
|
Color
|
"Typ. Flux
(LM/PC) |
Beam Angle
|
Power
(W/PC) |
Voltage (V DC)
|
|
LD-PA-TC3020CW-S
|
WarmWhite~White
|
500~650
|
110°
|
11
|
24
|
|

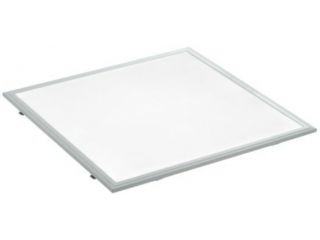

LED panel lights, Ambient temperature tested -40℃ to +50℃, IP52, Class 2. 120 degree. CRI=75Ra (90Ra option)
|
|
|
||||||
|
Material：Housing- 6063 alum Alloy. Diffuser plate- 4mm toughened fire-resist PMMA sheets, 93%
transmission. Light guide plage- 1.2mm 99.9% pure, 3D V-cut curved Japan-made Mitsubishi LGP. Iridescence class
Light source for CCT-adjusttable panels: Taiwan SMD2835 high bright and high sensitivity |
||||||||
|
Functions: color temperature and brightness are adjustable in a wide range.
|
|
|
|
|
||||
|
CCT from 3000K to 6000K and brightness from 0-100%.
|
||||||||
|
Control gear: External. Magnetic, HPF (0.9), thermal overload protected for LED. IEC. Optional for purchase.
Options: Electronic, thermal and overload protected gear on request.
Marine environment version on request.
|
|
|
||||||
|
Standards:
|
|
|
|
|
|
|
||
|
CE (EMC)
|
|
|
|
|
|
|
|
|
|
EN 55015: 2006+A1:2007+A2:2009
|
|
|
|
|
|
|
|
|
|
EN 61547:2009
|
|
|
|
|
|
|
|
|
|
EN 61000-3-2:2006+A1:2009
|
|
|
|
|
|
|
|
|
|
EN 61000-3-3: 2008
|
|
|
|
|
|
|
|
|
|
CE (LVD)
|
|
|
|
|
|
|
|
|
|
EN60598-1:2008+A11:2009
|
|
|
|
|
|
|
|
|
|
EN60598-2-1:1989
|
|
|
|
|
|
|
|
|
|
EN62471:2008
|
|
|
|
|
|
|
|
|
|
RoHS Directive: 2011/65/EU (Directive 2002/95/EC)
|
|
|
|
|
|
|
||
|
EPA3050B:1996, EN1122B:2001, EPA3052:1996, EPA3060A:1996,
|
|
|
|
|
|
|
||
|
EPA7196A:1992, EPA3540C:1996, EPA8270D: 2007, IEC62321:2008
|
|
|
|
|
|
|||
|
|
|
|
||||||
|
|
||||||||
|
|
|
|
|
|
||||
|
|
||||||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||
