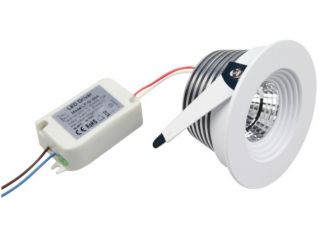

COB Concise 3.5
Model:LD-DL-CA-3.5
AC100~240V(50-60HZ)
10W/pc
Φ104*52mm(cutout 3.5inches)
10W/pc
Φ104*52mm(cutout 3.5inches)
Description :
|
Part No
|
Color
|
"Typ. Flux
(LM/PC) |
Beam Angle
|
Power
(W/PC) |
Voltage (V AC)
|
|
LD-DL-CA-3.5
|
WW
|
950
|
22.5°/36.5°/56 °
|
10
|
100~240
|
|
NW
|
965
|
10
|
|||
|
CW
|
980
|
10
|
|
|
|
|
||||||
|
LED panel lights, Ambient temperature tested -40℃ to +50℃, IP52, Class 3. 120 degree.
|
||||||||
|
Material：Housing- die-cast ADC 3 alum Alloy.
|
||||||||
|
Finishing: Mechanical and chemical anti-corrosion treatment; AKZO-NOBEL, polyester,
|
||||||||
|
UVresistant, exterior paint system, thermally cured at 200℃.
Reflector: symmetric possible incorporate precise distribution reflector that creates a powerful
narrow beam. The rotationally symmetric lighting distribution makes it possible to optimize
definition of sculptures and architecture features. The range also incorporates a elliptical beam and
a long distance spot beam.
|
||||||||
|
Control gear: External. Magnetic, HPF (0.95), thermal overload protected for LED.
|
|
|
||||||
|
Constant current-driven.
|
||||||||
|
Standards:
|
|
|
|
|
|
|
||
|
CE (EMC)
|
|
|
|
|
|
|
|
|
|
EN 55015: 2006+A1:2007+A2:2009
|
|
|
|
|
|
|
|
|
|
EN 61547:2009
|
|
|
|
|
|
|
|
|
|
EN 61000-3-2:2006+A1:2009
|
|
|
|
|
|
|
|
|
|
EN 61000-3-3: 2008
|
|
|
|
|
|
|
|
|
|
CE (LVD)
|
|
|
|
|
|
|
|
|
|
EN60598-1:2008+A11:2009
|
|
|
|
|
|
|
|
|
|
EN60598-2-1:1989
|
|
|
|
|
|
|
|
|
|
EN62471:2008
|
|
|
|
|
|
|
|
|
|
RoHS Directive: 2011/65/EU (Directive 2002/95/EC)
|
|
|
|
|
|
|
||
|
EPA3050B:1996, EN1122B:2001, EPA3052:1996, EPA3060A:1996,
|
|
|
|
|
|
|
||
|
EPA7196A:1992, EPA3540C:1996, EPA8270D: 2007, IEC62321:2008
|
|
|
|
|
|
|||
