DMX Decoder

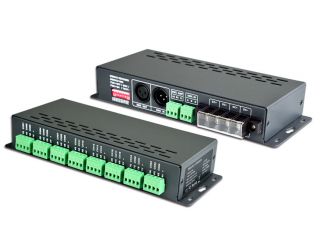

Model:DN-DMX880
Product Parameter:
.Input Signal:DMX512
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V～DC24V
.Input Signal:DMX512
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V～DC24V
Description :
Product Parameter:
| Input Signal | DMX512 |
| Power Supply Chosen | DC CV SMPS |
| Input Voltage | DC5V～DC24V |
| Max Load Current | 3A/CH×24CH Max 72A |
| Max Output Power | 360W/864W/1728W(5V/12V/24V) |
| Output Scale Level | 256 Levels/CH(8bit/CH) |
| Output DMX channel | 24CH CV PWM |
| DMX512 Socket | XLR-3, Green Terminal |
| Working Temperature | -30℃~65℃ |
| Dimension | L260×W120×H40mm |
| Package Size | L290×W130×H46mm |
| Weight(G.W.) | 860g |
