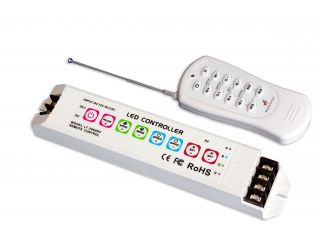

RGB Controller
Model:DN-RF3600
Technical Specs:
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC12V～DC24V
.Max Current Load:6A × 3CH
.Max Output Power:216W/432W(12V/24V)
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC12V～DC24V
.Max Current Load:6A × 3CH
.Max Output Power:216W/432W(12V/24V)
Description :
Technical Specs:
| Power Supply Chosen | DC CV SMPS |
| Input Voltage | DC12V～DC24V |
| Max Current Load | 6A × 3CH |
| Max Output Power | 216W/432W(12V/24V) |
| Grey Scale | 1024×1024×1024 |
| Remote Controlling Distance | 100m |
| Radio Frequency Range | 433.92MHz |
| RF Remote Output Power | 8mW |
| Working Temperature | -30℃-55 ℃ |
| Dimension | L211×W40×H30(mm) |
| Package Size | L313×W50×H32(mm) |
| Weight (G.W.) | 230g |
