Description :

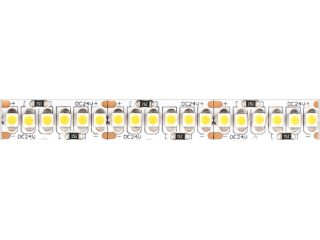

| LED type | SMD 3528 |
| Number LED/m | 240 LED |

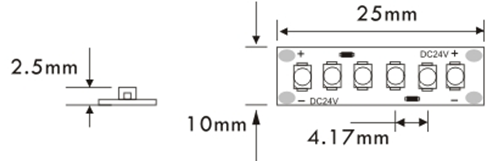

| LED pitch | 4.17 mm |
| Step length | 25mm/6 LED |
| Wattage/m | 19.2W±10% |
| Operating voltage | 24VDC |
| Dimensions | 5000x10x2.2mm |
| Beam angle | 120° |
| IP Rating | IP20 |
| PCB technology | Isolated double layer FPC |
| Ambient temp | Ta= -25°C to 50°C/(max. +70°C) |
| Connection | 2-pin AWG16 wires or male/female connectors |
| Control | 0-10V/1-10V/DMX/DALI/PWM |
| Colors | White/red/green/blue/yellow/pink/purple/amber |
| Part No. | Light color | color temperature | Power/m (W) |
Lumen/m (lm/m) |
Efficacy (lm/W) |
CRI |
| DN-F3528WW240S-L24 | WW | 2400K | 17.3 | 1270 | 73 | 80 |
| DN-F3528WW240S-L27 | WW | 2700K | 17.3 | 1320 | 76 | 80 |
| DN-F3528WW240S-L30 | WW | 3000K | 17.3 | 1345 | 78 | 80 |
| DN-F3528NW240S-L43 | NW | 4300K | 17.3 | 1370 | 79 | 80 |
| DN-F3528DW240S-L50 | DW | 5000K | 17.3 | 1405 | 81 | 80 |
| DN-F3528CW240S-L60 | CW | 6000K | 17.3 | 1440 | 83 | 80 |
