Description :
| LED type | SMD 5050 |
| Number LED/m | 60 LED |

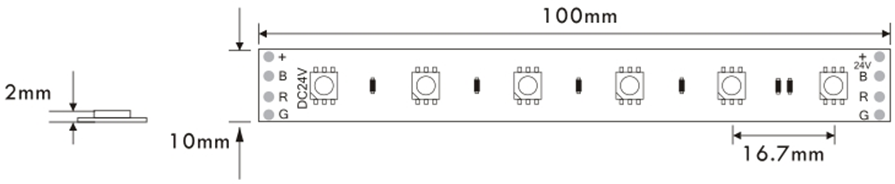

| LED pitch | 16.7 mm |
| Step length | 100mm/6 LED |
| Wattage/m | 14.4W±10% |
| Operating voltage | 24VDC |
| Dimensions | 5000x10x2mm |
| Beam angle | 120° |
| IP Rating | IP20 |
| PCB technology | Isolated double layer FPC |
| Ambient temp | Ta= -25°C to 50°C/(max. +70°C) |
| Connection | 4-pin AWG22 wire |
| Control | 0-10V/1-10V/DMX/DALI/PWM |
| Colors | RGB |
| Part No. | Light color | Power/m (W) |
Lumen/m (lm/m) R |
Lumen/m (lm/m) G |
Lumen/m (lm/m) B |
CRI |
| DN-F5050RGB60 | RGB | 13 | 60 | 242 | 150 | - |
