Products List
Description :
| LED type | SMD 5050 |
| Number LED/m | 72 LED |

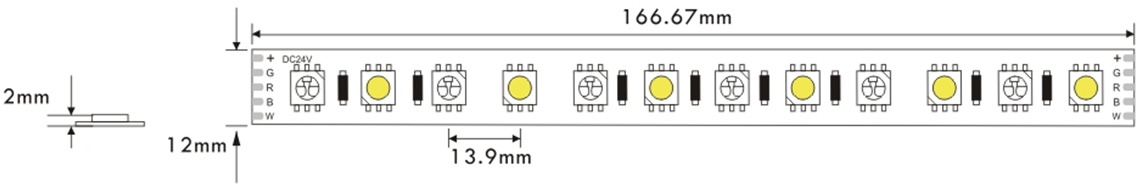

| LED pitch | 13.9 mm |
| Step length | 83.3mm/6 LED |
| Wattage/m | 17.28W±10% |
| Operating voltage | 24VDC |
| Dimensions | 5000x12x2mm |
| Beam angle | 120° |
| IP Rating | IP20 |
| PCB technology | Isolated double layer FPC |
| Ambient temp | Ta= -25°C to 50°C/(max. +70°C) |
| Connection | 5-pin AWG22 wire |
| Control | 0-10V/1-10V/DMX/DALI/PWM |
| Colors | White/red/green/blue/yellow/pink/purple/amber |
| Part No. | Light color | color temperature | Power/m (W) |
Lumen/m (lm/m) |
Efficacy (lm/W) |
CRI |
| DN-F5050RGBCW72-L60 | RGB+CW | 6000K | 15.6 | 306lm+580lm | - | 80 |
