Description :
.png)

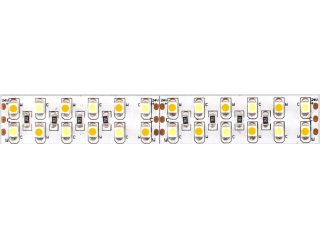

| LED type | SMD 3528 |
| Number LED/m | 240 LED |

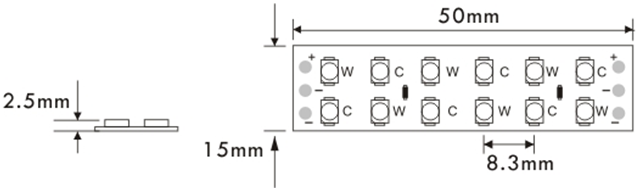

| LED pitch | 8.3 mm |
| Step length | 50mm/12 LED |
| Wattage/m | 19.2W±10% |
| Operating voltage | 24VDC |
| Dimensions | 5000x15x2.2mm |
| Beam angle | 120° |
| IP Rating | IP20 |
| PCB technology | Isolated double layer FPC |
| Ambient temp | Ta= -25°C to 50°C/(max. +70°C) |
| Connection | 3-pin AWG22 wires |
| Control | 0-10V/1-10V/DMX/DALI/PWM |
| Colors | White: 2400K, 2700K, 3000K, 4300K, 5000K, 6000K |
| Part No. | Light color | color temperature | Power/m (W) |
Lumen/m (lm/m) WW |
Lumen/m (lm/m) CW |
CRI |
| DN-F3528XX240D | WW- CW | 2400K-6000K | 17.6 | 700 | 800 | 80 |
