Description :

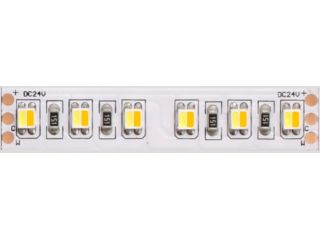

| LED type | SMD 3527 |
| Number LED/m | 120 LED |

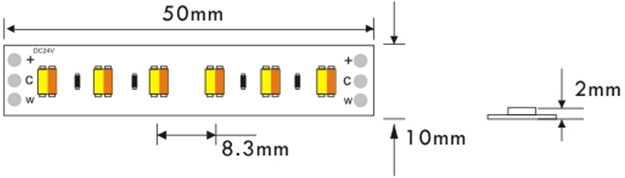

| LED pitch | 8.3mm |
| Step length | 50mm/6 LED |
| Wattage/m | 19.2W±10% |
| Operating voltage | 24VDC |
| Dimensions | 5000x10x2 mm |
| Beam angle | 120° |
| IP Rating | IP20 |
| PCB technology | Isolated double layer FPC |
| Ambient temp | Ta= -25°C to 50°C/(max. +70°C) |
| Connection | 3-pin AWG22 wire |
| Control | DMX/DALI |
| Part No. | Light color | color temperature | Power/m (W) |
Lumen/m (lm/m) WW |
Lumen/m (lm/m) CW |
CRI |
| DN-F3527XX-120 | WW-CW | 3000K-6000K | 17.3 | 500 | 600 | 80 |
