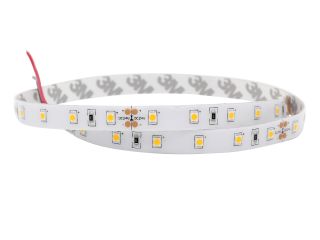

Description :
Product features:
LED type
SMD 2835
Number LED/m
60 LED
LED pitch
16.67 mm
Step length
100mm/6 LED
Wattage/m
13.2W±10%
Operating voltage
24VDC
Dimensions
5000x10x1.2mm
Beam angle
120°
IP Rating
IP65
PCB technology
Isolated double layer FPC
Ambient temp
Ta= -25°C to 50°C/(max. +70°C)
Connection
2-pin AWG22 wires or male/female connectors
Control
0-10V/1-10V/DMX/DALI/PWM
Colors
White/red/green/blue/yellow/pink/purple/amber
Parameters:
Part No.
Light color
color temperature
Power/m
(W)
Lumen/m
(lm/m)
Efficacy
(lm/W)
CRI
DN-SP2835WW60-L27
WW
2700K
13
1200
90
80
DN-SP2835DW60-L50
W
5000K
13
12690
97
80
DN-SP2835CW60-L60
CW
6000K
13
1260
100
80
