Technical Parameters
Controller
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)
● output: 3 channels
● connection mode: common anode
● static power consumption: <1W
● output current: <2A( each channel )
● output power: 5V:<30W, 12V:<72W, 24V:<144W
● controller dimension: L63ΧW35ΧH22 MM
● packing size: L105ΧW65ΧH40 mm
● net weight: 50g
● gross weight: 70g
Touch remote
● working temperature: -20-60℃
● power supply mode: AAA battery
● supply voltage: 1.5V*3
● static power consumption: 0.015mW
● standby current: 3uA
● work current: 300uA
● emission current: 12mA
● remote distance: 25m
● standby time: 6 months
Controller
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)
● output: 3 channels
● connection mode: common anode
● static power consumption: <1W
● output current: <2A( each channel )
● output power: 5V:<30W, 12V:<72W, 24V:<144W
● controller dimension: L63ΧW35ΧH22 MM
● packing size: L105ΧW65ΧH40 mm
● net weight: 50g
● gross weight: 70g
Touch remote
● working temperature: -20-60℃
● power supply mode: AAA battery
● supply voltage: 1.5V*3
● static power consumption: 0.015mW
● standby current: 3uA
● work current: 300uA
● emission current: 12mA
● remote distance: 25m
● standby time: 6 months
Description :
Summarization

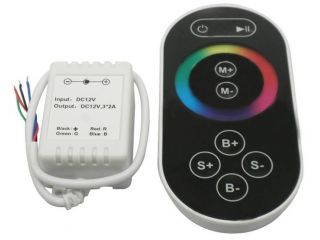

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.
Main feature
①Touch-button, ultrathin, light quality, protable.
②Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.
③Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
④Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.
Changes of M key on the touch remote as below:
|
Mode number
|
Function
|
Remark
|
|
1
|
Static red
|
brightness is adjustable， Speed is unadjustable
|
|
2
|
Static green
|
|
|
3
|
Static blue
|
|
|
4
|
Static yellow
|
|
|
5
|
Static purple
|
|
|
6
|
Static blue-green
|
|
|
7
|
Static white
|
|
|
8
|
Three color jumpy changing
|
Speed is adjustable, brightness is unadjustable
|
|
9
|
Three color gradual changing
|
Speed is adjustable, brightness is unadjustable
|
|
10
|
Seven color jumpy changing
|
Speed is adjustable, brightness is unadjustable
|
|
11
|
Seven color gradual changing
|
Speed is adjustable, brightness is unadjustable
|
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
3, Touch remote when not use for a long time, suggest to take down the battery.
