Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12~24
● output: 2 channels
● connection mode: common anode
● external dimension: L86 Χ W86Χ H36mm
● packing size: L90 Χ W90 Χ H45 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<96W,24V<192W

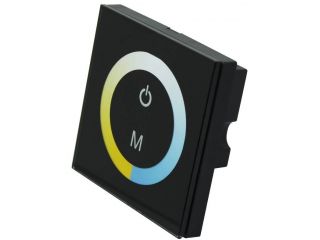

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; Can be realized cold light , warm light, such as white light effect change.



1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
