Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12~24V
● output: 1 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L90 Χ W90 Χ H60 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <8A
● output power: 12V<96W,24V<192W
● working temperature: -20-60 ℃
● supply voltage: DC12~24V
● output: 1 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L90 Χ W90 Χ H60 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <8A
● output power: 12V<96W,24V<192W
Description :
Summarization

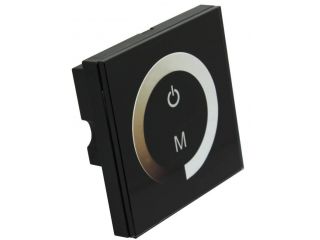

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, such as soft article light; Has the wiring convenient, use the advantages of simple.
Changes of M key as below:
|
Mode number
|
Function
|
Remark
|
|
1
|
10%
|
|
|
2
|
20%
|
|
|
3
|
30%
|
|
|
4
|
40%
|
|
|
5
|
50%
|
|
|
6
|
60%
|
|
|
7
|
70%
|
|
|
8
|
80%
|
|
|
9
|
90%
|
|
|
10
|
100%
|
|
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
