Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12~24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L100 Χ W100 Χ H50 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W
● working temperature: -20-60 ℃
● supply voltage: DC12~24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L100 Χ W100 Χ H50 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W
Description :

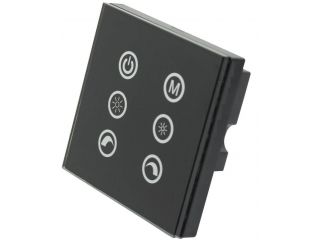

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change such as frequency effect.
Controller mode choice change as follows:
|
No
|
Patterns
|
Remarks
|
No
|
Patterns
|
Remarks
|
|
1
|
Static red
|
Brightness is adjustable,Speed is unadjustable.
|
12
|
Red stroboflash
|
Speed and
Brightness
are adjustable
|
|
2
|
Static blue
|
13
|
Blue stroboflash
|
||
|
3
|
Static purple
|
14
|
Purple stroboflash
|
||
|
4
|
Static green
|
15
|
Green stroboflash
|
||
|
5
|
Static yellow
|
16
|
Yellow stroboflash
|
||
|
6
|
Static cyan
|
17
|
Cycan stroboflash
|
||
|
7
|
Static white
|
18
|
White stroboflash
|
||
|
8
|
Three-color jumpy changing
|
Speed and brightness are adjustable
|
19
|
R/B crossfade
|
Speed is adjustable,
brightness is unadjustable
|
|
9
|
Seven-color jumpy changing
|
20
|
B/G crossfade
|
||
|
10
|
Three-color gradual changing
|
Speed is adjustable,brightness is unadjustable
|
21
|
G/R crossfade
|
|
|
11
|
Seven-color gradual changing
|
|
|
|
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
