Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12V -24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L100 Χ W100Χ H36 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W
● working temperature: -20-60 ℃
● supply voltage: DC12V -24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L100 Χ W100Χ H36 mm
● net weight: 125g
● gross weight: 150g
● static power: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W
Description :
Summarization

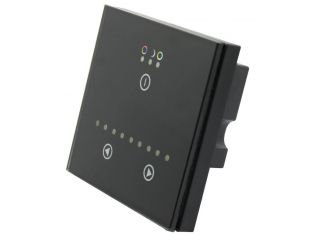

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change such as frequency effect.
Function explains:
A、RGB mode
mode choice change as follows:
Mode number
Function
Remark
1
Static red
brightness is adjustable， Speed is unadjustable
2
Static green
3
Static blue
4
Static yellow
5
Static purple
6
Static blue-green
7
Static white
8
Three color jumpy changing
Speed is adjustable, brightness is unadjustable
9
Three color gradual changing
Speed is adjustable, brightness is unadjustable
10
Seven color jumpy changing
Speed is adjustable, brightness is unadjustable
11
Seven color gradual changing
Speed is adjustable, brightness is unadjustable
B、color temperaturemode
mode choice change as follows:
|
Mode number
|
Function
|
Remark
|
|
1
|
warm white
|
|
|
2
|
warm white +20% Cold White
|
|
|
3
|
warm white +40% Cold White
|
|
|
4
|
warm white +60% Cold White
|
|
|
5
|
warm white +80% Cold White
|
|
|
6
|
White
|
|
|
7
|
Cold White +80% warm white
|
|
|
8
|
Cold White +60% warm white
|
|
|
9
|
Cold White +40% warm white
|
|
|
10
|
Cold White +20% warm white
|
|
|
11
|
Cold White
|
|
C、dimmer mode;
Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
