Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V ,18V, 24V（Order goods need marking out the required voltage）
● Output: 3 channels
● Connecting mode: common anode
● External dimension: L121ΧW53ΧH25 mm
● Packing size: L150ΧW76ΧH51 mm
● Net weight:255g
● Gross weight:285g
● Static power consumption: <1W
● Output current: <4A(each channel)
● Output power: 5V:<60W, 12V:<144W, 24V:<288W
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V ,18V, 24V
● Output: 3 channels
● Connecting mode: common anode
● External dimension: L121ΧW53ΧH25 mm
● Packing size: L150ΧW76ΧH51 mm
● Net weight:255g
● Gross weight:285g
● Static power consumption: <1W
● Output current: <4A(each channel)
● Output power: 5V:<60W, 12V:<144W, 24V:<288W
Description :
Summarization

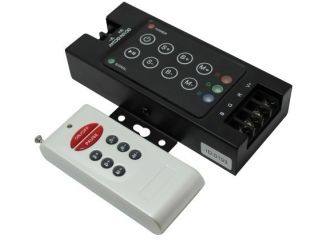

RF 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Standard changes funtion as the following form:
|
No.
|
Patterns
|
Remarks
|
No.
|
Patterns
|
Remarks
|
|
1
|
Static red
|
Brightness is adjustable,Speed is unadjustable.
|
14
|
Blue stroboflash
|
Speed and
Brightness
are adjustable
|
|
2
|
Static green
|
15
|
Purple stroboflash
|
||
|
3
|
Static blue
|
16
|
Green stroboflash
|
||
|
4
|
Static yellow
|
17
|
Yellow stroboflash
|
||
|
5
|
Static purple
|
18
|
Cycan stroboflash
|
||
|
6
|
Static cyan
|
19
|
White stroboflash
|
||
|
7
|
Static white
|
20
|
R/B crossfade
|
Speed is adjustable,
brightness is unadjustable
|
|
|
8
|
Three-color jumpy changing
|
Speed and brightness are adjustable
|
21
|
B/G crossfade
|
|
|
9
|
Seven-color jumpy changing
|
22
|
G/R crossfade
|
||
|
10
|
Three-color gradual changing
|
Speed is adjustable,brightness is unadjustable
|
23
|
fadeout and fadein in whole
|
|
|
11
|
Seven-color gradual changing
|
24
|
Random flashing
|
|
|
|
12
|
Three-color running
|
Speed and
Brightness
are adjustable
|
25
|
AUTO
|
1～24
|
|
13
|
Red stroboflash
|
|
|
|
