Technical Parameters
● Working temperature: -20-60 ℃
● Supply voltage: 24VDC
● Output: 3 channels
● External dimension: L165XW68XH40（mm）
● Packing size: L170XW75XH50（mm）
● Net weight: 320g
● Gross weight: 355g
● Output current: each channel 700mA
● Output power: 25.2W
● Out grayscale: 256
● Output power : 5V:<10.5W , 12V:<25.2W , 24V:<50.4W
● Working temperature: -20-60 ℃
● Supply voltage: 24VDC
● Output: 3 channels
● External dimension: L165XW68XH40（mm）
● Packing size: L170XW75XH50（mm）
● Net weight: 320g
● Gross weight: 355g
● Output current: each channel 700mA
● Output power: 25.2W
● Out grayscale: 256
● Output power : 5V:<10.5W , 12V:<25.2W , 24V:<50.4W
Description :
Summarization

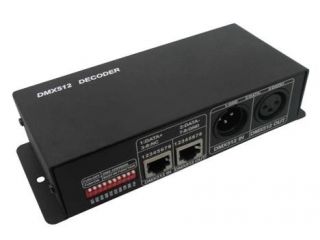

DMX Constant controlleradopts the advanced micro control unit, itreceives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
