Technical parameters
● Can switch on/off led products automatically
● Ideal for security light or cabinet light
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 24V can choose (specify the required voltage on orders)
● Output: 1 channel
● Sensing distance: 5～8 M
● Detection angle: 60 degree
● External dimension: L86ΧW86ΧH26 mm
● Packing size: L160ΧW95ΧH51mm
● Net weight: 60g
● Gross weight: 100g
● Static power consumption: <1W
● Output current: <8A
● Output power: 5V:<40 W, 12V:< 96W, 24V:<192 W
● Can switch on/off led products automatically
● Ideal for security light or cabinet light
● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 24V can choose (specify the required voltage on orders)
● Output: 1 channel
● Sensing distance: 5～8 M
● Detection angle: 60 degree
● External dimension: L86ΧW86ΧH26 mm
● Packing size: L160ΧW95ΧH51mm
● Net weight: 60g
● Gross weight: 100g
● Static power consumption: <1W
● Output current: <8A
● Output power: 5V:<40 W, 12V:< 96W, 24V:<192 W
Description :
Summarization

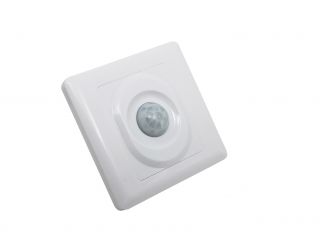

The human body induction switch is an infrared detection controller, using infrared detection way to control load switch. Users can according to actual requirement, install the human body induction switch in suitable environment.
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power;
2. Light load lamp when detect somebody, then when people leave after 10 seconds, the load lamp will off
automatically.
3. The controller signal output line and input line should be connected correctly.
