Technical parameters
● working temperature: -20-60℃
● supply voltage: DC5V
● output: 8 SPI signal
● connection mode: common anode
● external dimension: L113ΧW49ΧH23mm
● packing size: L137ΧW60ΧH51mm
● net weight: 115g
● gross weight: 145g
● static power consumption: <1W
● working temperature: -20-60℃
● supply voltage: DC5V
● output: 8 SPI signal
● connection mode: common anode
● external dimension: L113ΧW49ΧH23mm
● packing size: L137ΧW60ΧH51mm
● net weight: 115g
● gross weight: 145g
● static power consumption: <1W
Description :
Summarization

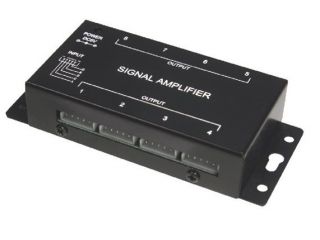

Dream-color amplifier applies to all the dream-color controllers in our company , each time add one dream-color amplifier, it could output 8 groups of dream-color signals,achieve the effection of multi-group dream-color strip light changing synchronously. Dream-color amplifiers could be connected immensely.
Direction for Use
According to the silk-screen prompts on the panel of dream-color amplifier, to connect input and output signal wires in order，ensure short circuit can not occur between wires, then connect power with dream-color amplifier, actually use it with dream-color controller, please reference to the following typical application.
