Technical parameters
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent input current: < 6MA
● External dimension: L86 * W86 * H36mm
● Gross weight: 61.4g
● Net weight: 32.6
● Supply voltage: DALI bus signal
● Working temperature: 0-50℃
● Storage temperature: -25-55℃
● Input signal: 4 channel physics switch signal
● Output signal: standard IEC60929 DALI signal
● Quiescent input current: < 6MA
● External dimension: L86 * W86 * H36mm
● Gross weight: 61.4g
● Net weight: 32.6
Description :
Summarization
DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.

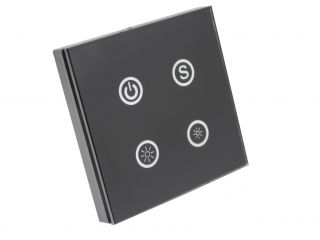

DALI Touch Multi-function Panel adopt advanced computer control chip, can do on/off, dimming, 16 scene change operation of dimmer on bus, it is convenience for customer to control all equipments on bus, it is a role of master switch.
Function description
•Through the changes of 4 buttons input, can switch DALI mode. Switch mode have: dimming add,
dimming minus, on, off, scene 1-16 switching.
•This panel operate address is broadcast address.
•Through the set mode(short press and long press) operation to distinguish different input, activate all
kinds of functions.
