Summarization

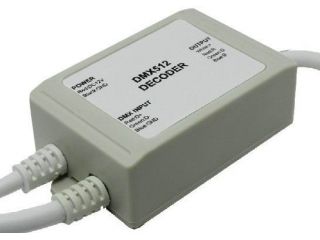

DMX common controller using advanced computer control chip, receiving international widely used DMX-512 standard digital control signal, convert PWM control signal to drive LED; can connect with DMX digital console, to realize dimming or various program changes.

Direction for use

1.According to DMX decoder panel silk-screen prompt, in sequence to connect the input and output signal wire. Please ensure short circuit can not occur between connecting wire before you turn on the power.
2.In the absence of receiving DMX signal, the module will achieve a seven color gradual
 changing mode(built-in function).
3.Receiving DMX signal, the built-in function is not available, it will be controlled by computer console control.
4.You could set the address code of module ( from 1 to 1022) through the DMX editor of our company.
