3527 SMD LED Bi-Color FLEX STRIP
Model:DN-F3527X/XX120-24V
LED Flex strip Ribbon Series
IP20
3527, 120 LEDs/m
DC 24V
3M adhesive tape on the back
IP20
3527, 120 LEDs/m
DC 24V
3M adhesive tape on the back
Description :
LED Flex strip Ribbon Series is made by SMD LED mounted directly on the surface of the flexible PCB (Printed Circuit board), with 3M tape on the back, for indoor use only.

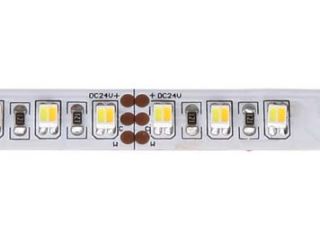

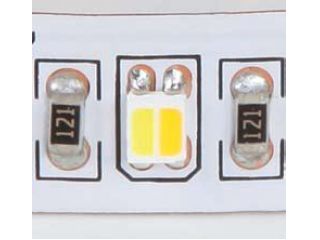

Photo:
Features:
|
· PCB color
|
brown, white, black
|
|
· LED Qty per cutting unit
|
6 LEDs
|
|
· Cutting length
|
5cm
|
|
· Cutting unit per meter
|
20
|
|
· Dimension
|
5000x10x2.2mm
|
|
· Package
|
5 meters per reel, with plastic reel and antistatic bag
|
|
· Warranty
|
2 years
|
|
· Approvals
|
CE, RoHS
|
|
· Working voltage
|
DC 24V
|
|
· Working current
|
0.6A/m
|
|
· Power consumption
|
14.4W/m
|
|
· Dimmable
|
Yes
|
|
· Vibration resistant
|
Yes
|
|
· Beam angle
|
120 degree
|
|
· Emitting Color
|
color 1,color 2
|
|
· Lumen maintenance after 10,000hrs
|
95%
|
|
· Accessories
|
3M adhesive tape on the back, male/female connectors are optional
|
|
Part NO.
|
Voltage
|
Power/meter
|
LED color
|
LED Qty/m
|
Lumen/m
|
|
DN-F3527X/XX120-24V
|
24V
|
15.36watt
|
color 1
|
120
|
/
|
|
color 2
|
/
|
