Summarization

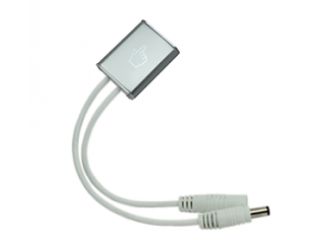

Led line touch dimmer adopts capacitive touch technology, ON/OFF and Dimming function can achieve touch, direct current 12/24V directly drive led lighting product,such as led cabinet light, led dome light, LED light bar and led panel light, it can also be used as on/off button, to realize one key switch control of lamps, at the same time, in the process of dimming, light and shade change evenly, soft, no flicker.

Technical parameters
Working temperature: -20-60℃
Power supply voltage: DC 12-24V
Output voltage: DC 12-24V
Output: 1 channel
External dimension: L39*W30.8*H9.0 mm
Packing size: L174*w84mm
Net weight: 26.0g
Gross weight: 38.0g
Max output current: 6A
Max output power: 72W/12V 144W/24V
