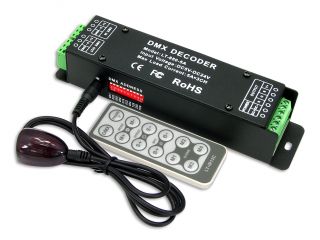

DMX Decoder
Model:DN-DMX850
Product Parameter:
.Input Signal:DMX512
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V～DC24V
.Input Signal:DMX512
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V～DC24V
Description :
Product Parameter:
| Input Signal | DMX512 |
| Power Supply Chosen | DC CV SMPS |
| Input Voltage | DC5V～DC24V |
| Max Current Load | 5A/CH×3CH 15A Max |
| Max Output Power | 75W/180W/360W(5V/12V/24V) |
| Output Gray Scale | 256 Levels/CH(8bit/CH) |
| DMX512 Socket | Green Terminal |
| Working Temperature | -30℃-65℃ |
| Dimension | L175×W42×H33mm |
| Package Size | L178×W46×H58mm |
| Weight(G.W.) | 310g |
