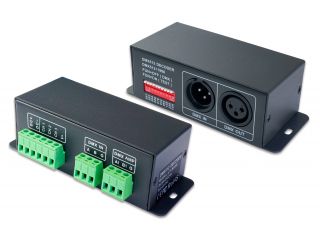

DMX Decoder
Model:DN-DMX8030
Produce Parameter:
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V~DC24V
.Max Load Current:4A/CH×3CH 12A Max
.Power Supply Chosen:DC CV SMPS
.Input Voltage:DC5V~DC24V
.Max Load Current:4A/CH×3CH 12A Max
Description :
Produce Parameter:
| Power Supply Chosen | DC CV SMPS |
| Input Voltage | DC5V~DC24V |
| Max Load Current | 4A/CH×3CH 12A Max |
| Max Output Power | 60W/144W/288W(5V/12V/24V) |
| Output Scale Level | 256 levels(8 Bit/CH) |
| Input Signal | DMX512 |
| DMX512 socket | Standard XLR-3, Green Terminal |
| Working Temperature | -30℃~65℃ |
| Dimension | L125×W52×H40mm |
| Package Size | L135×W70×H50mm |
| Weight (G.W.) | 300g |
